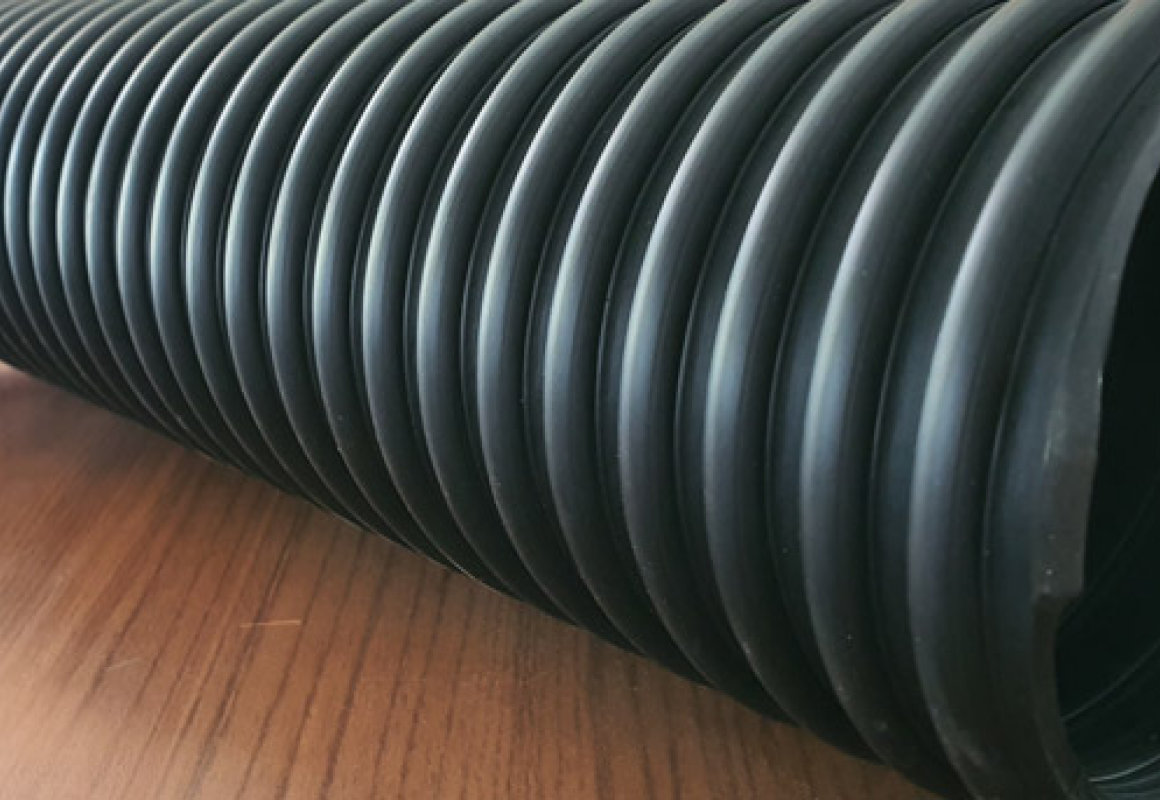

Chemical Suction Hose[KR-180]

Uses

Heavy duty abrasion resistant suction hose for vacuum truck or handling abrasives such as crushed rock , sand, pea, gravel, cement powder, fertilizer, iron ore and grains.

Characteristics

Provide good abrasion, chemical and UV resistance. Static dissipating with no grounding wire.

Synthetic rubber with carbon black, rigid PVC helix, smooth bore ,corrugated out surface with smooth skin.

Sevice Temperature Range : -40°F ~ 140°F

I.D (Inches)	O.D (Inches)	Pitch (Inches)	Minimum Bend Radius 72°F(Inches)	Working Pressure 72°F(Psi)	Vacuum Rating 72°F(In Hg)	Weight (Lbs/ft)	Standard Length(ft)
I.D(Inches)1 1/4	O.D(Inches)1.6	Pitch(Inches)0.33	Minimum Bend Radius 72°F(Inches)2.0	Working Pressure 72°F(Psi)45	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)0.31	Standard Length(ft)100
I.D(Inches)1 1/2	O.D(Inches)1.9	Pitch(Inches)0.35	Minimum Bend Radius 72°F(Inches)2.0	Working Pressure 72°F(Psi)45	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)0.37	Standard Length(ft)100
I.D(Inches)2	O.D(Inches)2.4	Pitch(Inches)0.39	Minimum Bend Radius 72°F(Inches)2.5	Working Pressure 72°F(Psi)40	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)0.50	Standard Length(ft)100
I.D(Inches)2 1/2	O.D(Inches)3	Pitch(Inches)0.56	Minimum Bend Radius 72°F(Inches)2.5	Working Pressure 72°F(Psi)35	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)0.88	Standard Length(ft)100
I.D(Inches)3	O.D(Inches)3.5	Pitch(Inches)0.59	Minimum Bend Radius 72°F(Inches)3.0	Working Pressure 72°F(Psi)35	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)1.10	Standard Length(ft)100
I.D(Inches)3 1/2	O.D(Inches)4.11	Pitch(Inches)0.64	Minimum Bend Radius 72°F(Inches)4.0	Working Pressure 72°F(Psi)30	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)1.35	Standard Length(ft)100
I.D(Inches)4	O.D(Inches)4.63	Pitch(Inches)0.65	Minimum Bend Radius 72°F(Inches)4.5	Working Pressure 72°F(Psi)30	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)1.77	Standard Length(ft)50,100
I.D(Inches)5	O.D(Inches)5.76	Pitch(Inches)0.87	Minimum Bend Radius 72°F(Inches)5.0	Working Pressure 72°F(Psi)30	Vacuum Rating 72°F(In Hg)28.0	Weight(Lbs/ft)2.47	Standard Length(ft)50,100
I.D(Inches)6	O.D(Inches)6.8	Pitch(Inches)0.87	Minimum Bend Radius 72°F(Inches)9.2	Working Pressure 72°F(Psi)30	Vacuum Rating 72°F(In Hg)28.0	Weight(Lbs/ft)3.08	Standard Length(ft)50,100
I.D(Inches)8	O.D(Inches)9.04	Pitch(Inches)0.91	Minimum Bend Radius 72°F(Inches)15.0	Working Pressure 72°F(Psi)30	Vacuum Rating 72°F(In Hg)27.0	Weight(Lbs/ft)5.65	Standard Length(ft)50
I.D(Inches)10	O.D(Inches)11.18	Pitch(Inches)1,00	Minimum Bend Radius 72°F(Inches)30.0	Working Pressure 72°F(Psi)28	Vacuum Rating 72°F(In Hg)25.0	Weight(Lbs/ft)8.88	Standard Length(ft)20
I.D(Inches)12	O.D(Inches)13.31	Pitch(Inches)1.18	Minimum Bend Radius 72°F(Inches)40.0	Working Pressure 72°F(Psi)25	Vacuum Rating 72°F(In Hg)25.0	Weight(Lbs/ft)10.43	Standard Length(ft)20
