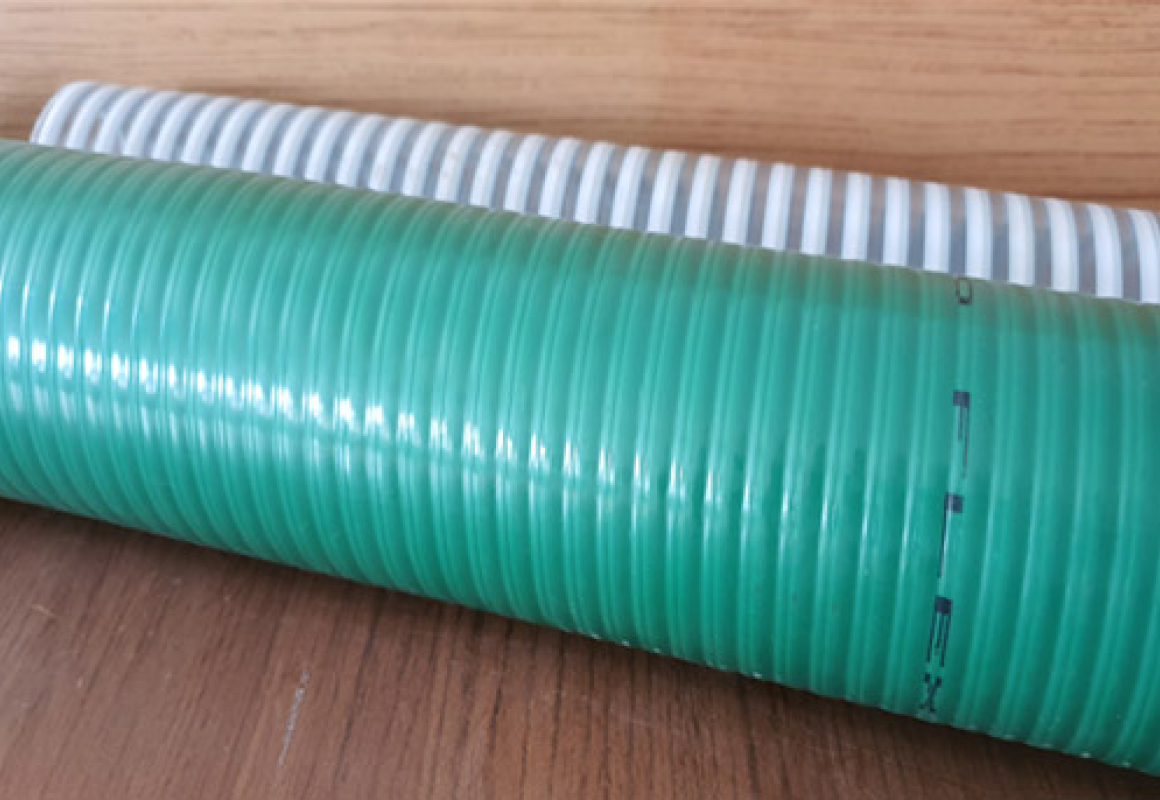

Heavy Duty Suction Hose[KH-113GR/113CL]

Heavy Duty Water Suction & Discharge.

Heavy Duty water suction and discharge hose.

Provide good abrasion, chemical and UV resistance.

Flexible PVC ,rigid PVC helix, smooth bore, smooth out surface.

Sevice Temperature Range : -13°F ~ 140°F

I.D (Inches)	O.D (Inches)	Pitch (Inches)	Minimum Bend Radius 72°F(Inches)	Working Pressure 72°F(Psi)	Vacuum Rating 72°F(In Hg)	Weight (Lbs/ft)	Standard Length(ft)
I.D(Inches)1 1/4	O.D(Inches)1.47	Pitch(Inches)0.26	Minimum Bend Radius 72°F(Inches)3.0	Working Pressure 72°F(Psi)80	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)0.29	Standard Length(ft)100
I.D(Inches)1 1/2	O.D(Inches)1.77	Pitch(Inches)0.30	Minimum Bend Radius 72°F(Inches)4.0	Working Pressure 72°F(Psi)70	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)0.39	Standard Length(ft)100
I.D(Inches)2	O.D(Inches)2.30	Pitch(Inches)0.33	Minimum Bend Radius 72°F(Inches)5.0	Working Pressure 72°F(Psi)65	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)0.63	Standard Length(ft)100
I.D(Inches)2 1/2	O.D(Inches)2.84	Pitch(Inches)0.37	Minimum Bend Radius 72°F(Inches)6.0	Working Pressure 72°F(Psi)65	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)0.87	Standard Length(ft)100
I.D(Inches)3	O.D(Inches)3.35	Pitch(Inches)0.37	Minimum Bend Radius 72°F(Inches)8.0	Working Pressure 72°F(Psi)55	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)1.05	Standard Length(ft)100
I.D(Inches)4	O.D(Inches)4.45	Pitch(Inches)0.43	Minimum Bend Radius 72°F(Inches)10.0	Working Pressure 72°F(Psi)50	Vacuum Rating 72°F(In Hg)29.8	Weight(Lbs/ft)1.80	Standard Length(ft)100
