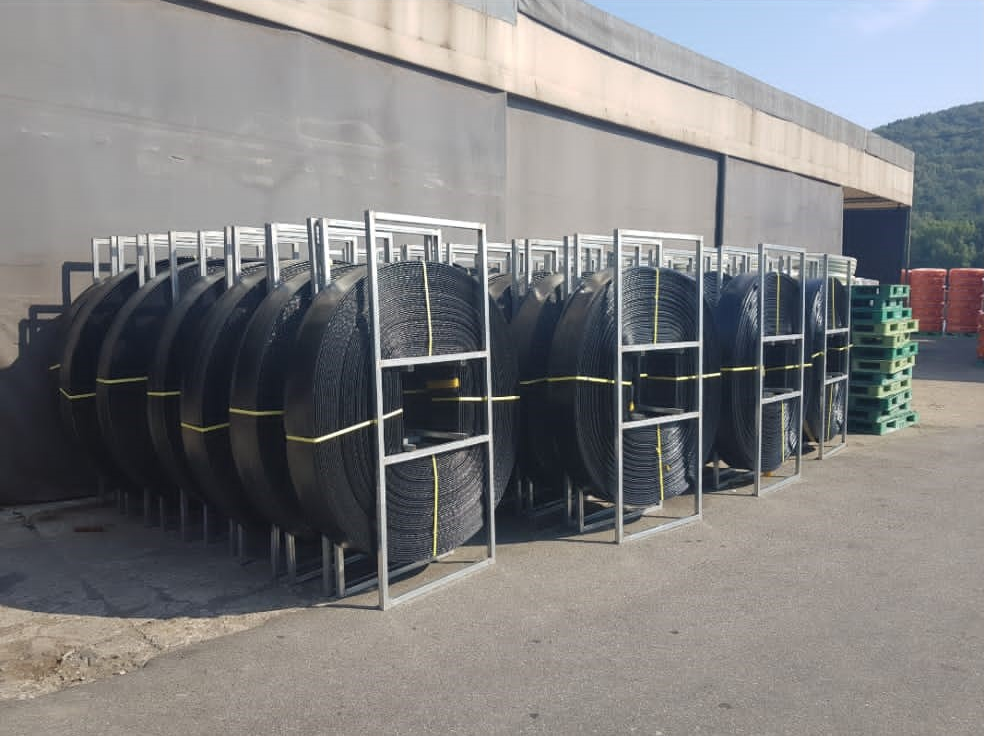

Kobra Flat Hose

ko-hi-fle

This hose is made from themoplastic polyther based polyurethane(TPU) by high pressure around a circular woven jacket made from high tenacity filament polyester yarn.

Characteristics

extreme abrasion resistance capability make the hose adapt to more working conditions.

color:black, other colors on request.

Temperature Range:-40°C~70°C

Size W.P.(bar) B.P.(bar) Wall Thickness(mm) Weight(kg/m) Tensile Strength(kg) Length(m)
Size4" W.P.(bar)20 B.P.(bar)60 Wall Thickness(mm)4.0 Weight(kg/m)1.6 Tensile Strength(kg)34,100 Length(m)50~200
Size6" W.P.(bar)18 B.P.(bar)54 Wall Thickness(mm)4.0 Weight(kg/m)2.8 Tensile Strength(kg)35,000 Length(m)50~200
Size8" W.P.(bar)14 B.P.(bar)42 Wall Thickness(mm)4.2 Weight(kg/m)3.23 Tensile Strength(kg)39,000 Length(m)50~200
Size10" W.P.(bar)14 B.P.(bar)42 Wall Thickness(mm)4.6 Weight(kg/m)4.59 Tensile Strength(kg)43,300 Length(m)50~200
Size12" W.P.(bar)10.5 B.P.(bar)31.5 Wall Thickness(mm)4.2 Weight(kg/m)5.1 Tensile Strength(kg)59,600 Length(m)50~200
Size12" W.P.(bar)14 B.P.(bar)42 Wall Thickness(mm)5.8 Weight(kg/m)6.4 Tensile Strength(kg)67,700 Length(m)50~200
