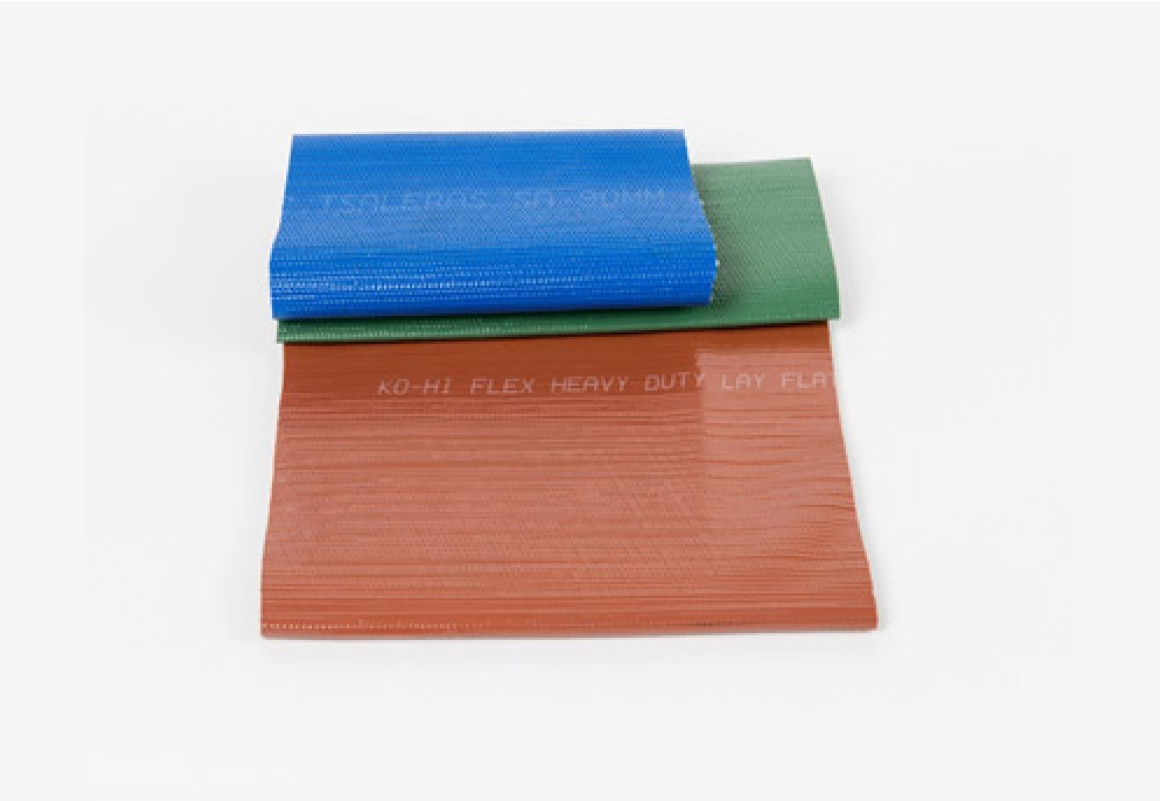

Lay Flat Discharge Hoses (KH-DR)

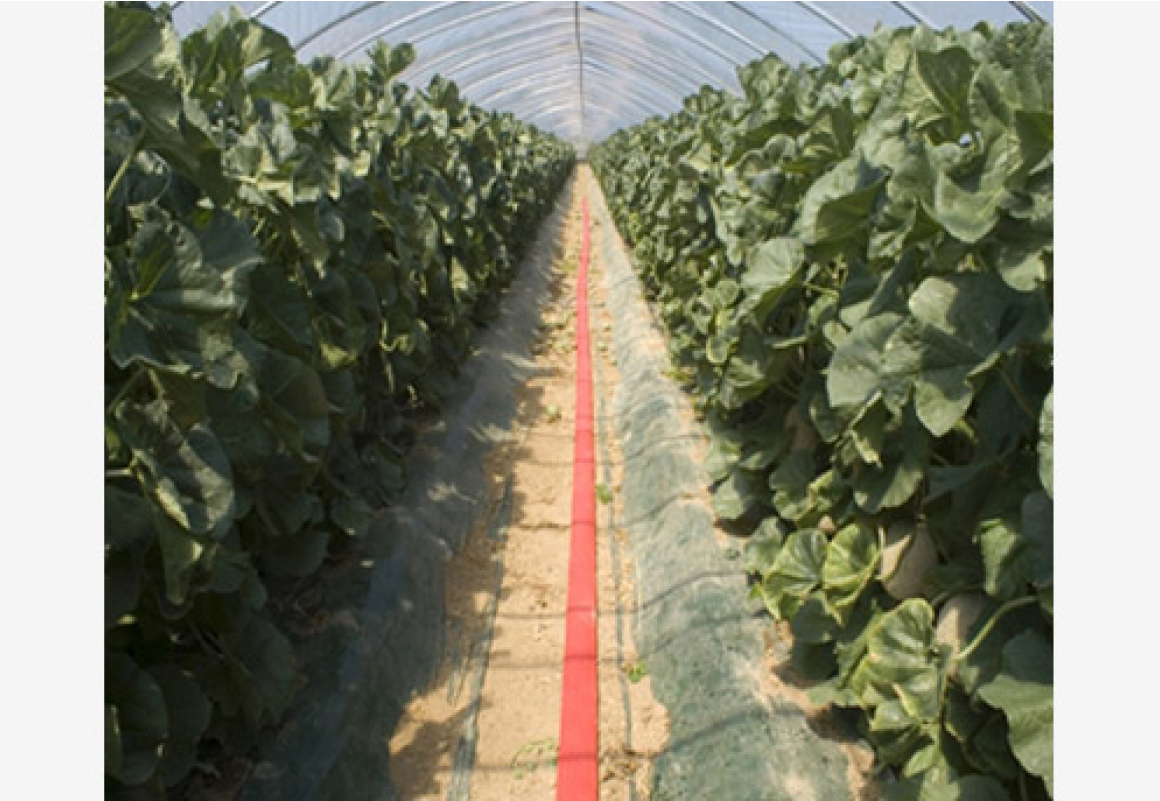

Drip irrigation

High pressure water supply

Sprinkler

Public works

Provide low friction loss

Excellent mobility

Good pressure resistance

Provide good abrasion, chemical and UV resistance.

Sevice Temperature Range : -20°F ~ 170°F

Lay Flat Discharge Hose(KDR-10)		Inner Diameter	Thickness	Length(roll)	W.P(at 20°C)	B.P(at 20°C)
mm	inch	mm	inch	FT	psi	psi
Lay Flat Discharge Hose(KDR-10)(mm)40	Lay Flat Discharge Hose(KDR-10)(inch)1 1/2	Inner Diameter(mm)40	Thickness(inch)0.067	Length(roll)(FT)300	W.P(at 20°C)(psi)80	B.P(at 20°C)(psi)240
Lay Flat Discharge Hose(KDR-10)(mm)50	Lay Flat Discharge Hose(KDR-10)(inch)2	Inner Diameter(mm)52	Thickness(inch)0.067	Length(roll)(FT)300	W.P(at 20°C)(psi)80	B.P(at 20°C)(psi)240
Lay Flat Discharge Hose(KDR-10)(mm)75	Lay Flat Discharge Hose(KDR-10)(inch)3	Inner Diameter(mm)77	Thickness(inch)0.079	Length(roll)(FT)300	W.P(at 20°C)(psi)70	B.P(at 20°C)(psi)210
Lay Flat Discharge Hose(KDR-10)(mm)100	Lay Flat Discharge Hose(KDR-10)(inch)4	Inner Diameter(mm)104	Thickness(inch)0.083	Length(roll)(FT)300	W.P(at 20°C)(psi)70	B.P(at 20°C)(psi)210
Lay Flat Discharge Hose(KDR-10)(mm)150	Lay Flat Discharge Hose(KDR-10)(inch)6	Inner Diameter(mm)156	Thickness(inch)0.087	Length(roll)(FT)300	W.P(at 20°C)(psi)50	B.P(at 20°C)(psi)150
Lay Flat Discharge Hose(KDR-10)(mm)200	Lay Flat Discharge Hose(KDR-10)(inch)8	Inner Diameter(mm)207	Thickness(inch)0.106	Length(roll)(FT)300	W.P(at 20°C)(psi)45	B.P(at 20°C)(psi)135
